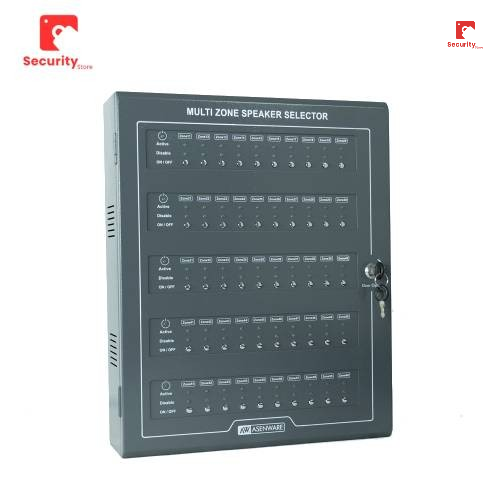

Multi Zone Speaker Selector

SKU: AW-EV602 Category: Voice Evacuation System

Item No.: AW-EV602

AW-EV602 has 5 zone control boards, and 50 speaker zones in total, used for extending zones, and can also be used to expand power with external power amplifiers. Each speaker zone has an independent isolating switch.

Description

Electrical parameters

Rated input voltage	~110VAC~ 260VAC ,50/60Hz
Standby battery	Two 12V/2.3Ah lead-acid batteries in series
Work Temperature	-10℃~50℃
Work Humidity	≤95% RH
Size	390480106.2mm

LED indicators specification

Indicator Name	Color	Status specification
POWER	Green	When the power supply of the front zone board is normal, the green light is on.
Activate	Red	When the current zone is activated, the red light is on.
Disable	Yellow	When the current zone is isolated, the yellow light is on.
