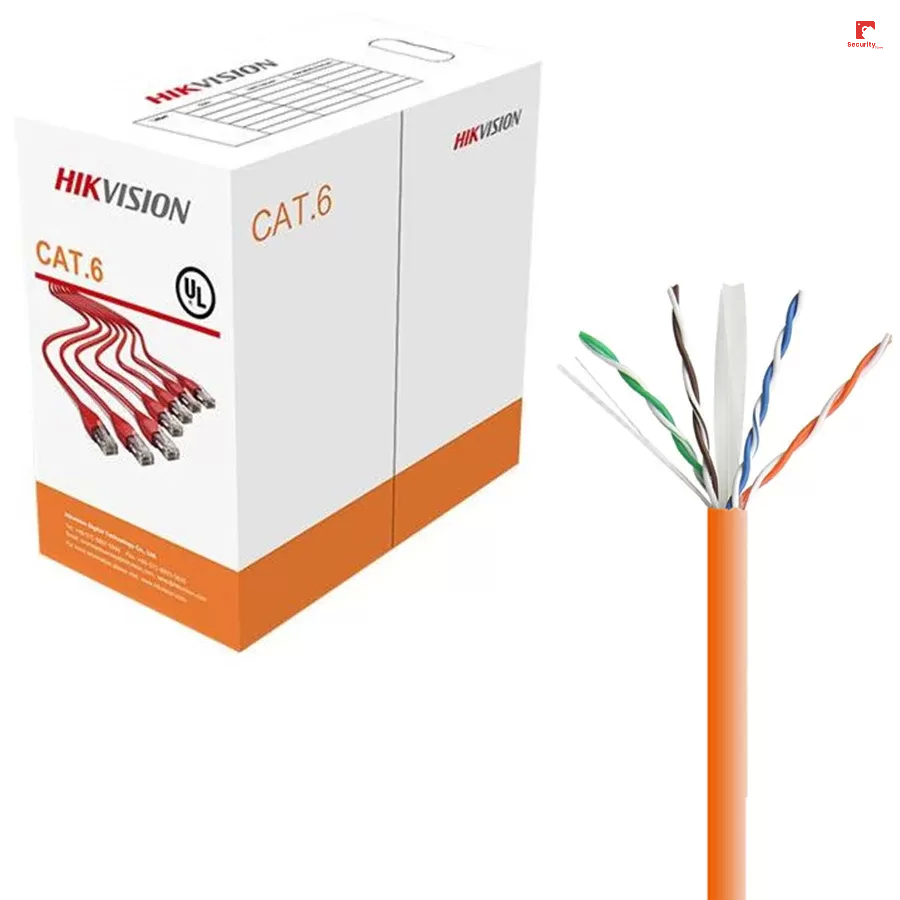

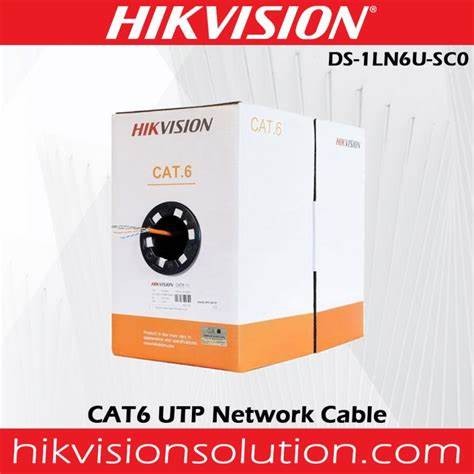

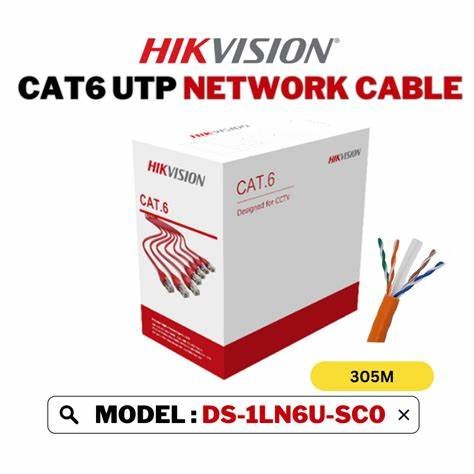

The Hikvision DS-1LN6U-SC0 is a high-performance CAT6 UTP (Unshielded Twisted Pair) network cable designed for reliable data transmission. With solid bare copper conductors and a robust PVC sheath, this cable ensures superior connectivity, low signal loss, and excellent mechanical durability. It is ideal for various applications, including networking, CCTV installations, and structured cabling systems.

Key Features:

• Pure Copper Conductors: Made of solid bare copper (99.95%) for enhanced signal transmission and reduced interference.
• High-Speed Data Transmission: Supports Gigabit Ethernet (1000BASE-T), ensuring stable and fast network performance.
• Durable PVC Sheath: Offers high tensile and compressive strength to prevent damage during installation.
• Standards Compliance: Meets ANSI/TIA-568-C.2, IEC61156, and ISO/IEC11801 standards for structured cabling.
• Excellent Performance: Successfully passes the Fluke 90m permanent link test and the 100m channel test under high-temperature conditions.
• PoE Compatible: Supports Power over Ethernet (PoE) applications, making it ideal for IP cameras and network devices.

Specifications:

• Conductor Material: Solid Bare Copper (99.95%)
• Conductor Diameter: 0.55 ± 0.005 mm (23 AWG)
• Insulation Material: High-Density Polyethylene (HDPE)
• Sheath Material: Polyvinyl Chloride (PVC)
• Cable Diameter: 6.00 ± 0.30 mm
• Operating Temperature: -20°C to 75°C (-4°F to 167°F)
• Operating Voltage: 60 V
• Length: 305 meters (1000 feet)
