Resolution Dual 2K+ Resolution
Image sensor 1/3″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Fixed Lens [email protected] , view angle: 108?(Diagonal), 92? (Horizontal), 50?(Vertical)
PT Lens [email protected] , view angle: 60?(Diagonal), 51? (Horizontal), 28?(Vertical)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Video Compression H.264/H.265
Video/Audio Bit Rate Adaptive bit rate.
Max. Resolution 2560 ? 1440
Frame Rate Max:30fps; Self-Adaptive during network transmission
Smart Alarm Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing AP paring
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Storage Micro SD card slot (Max. 512G)
Power TYPE-C
Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Standard IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range 2.4GHz: 2.4 GHz ~ 2.4835 GHz
5GHz: 5.15GHz~5.25GHz
Channel Bandwidth 2.4GHz Supports 20MHz
5GHz Supports 80MHz
Security WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate
2.4GHz Max. Rate Support: 11b_11M?11g_54M?11n_MCS7_20M?11ax_MCS11_20M
5.15-5.25GHz Max. Rate Support: 11a_54M?11n_MCS7_20-40M?11ac_MCS9_20-40-80M?
11ax_MCS11_20-40-80M
Output Power (EIRP) 20 dBm
Antenna Gain [email protected][email protected]
Operating Conditions -10?C to 45?C (14?F to 113 ?F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/2A
Power Consumption 8W max
IR Range MAX. 10 meters(32.81ft)

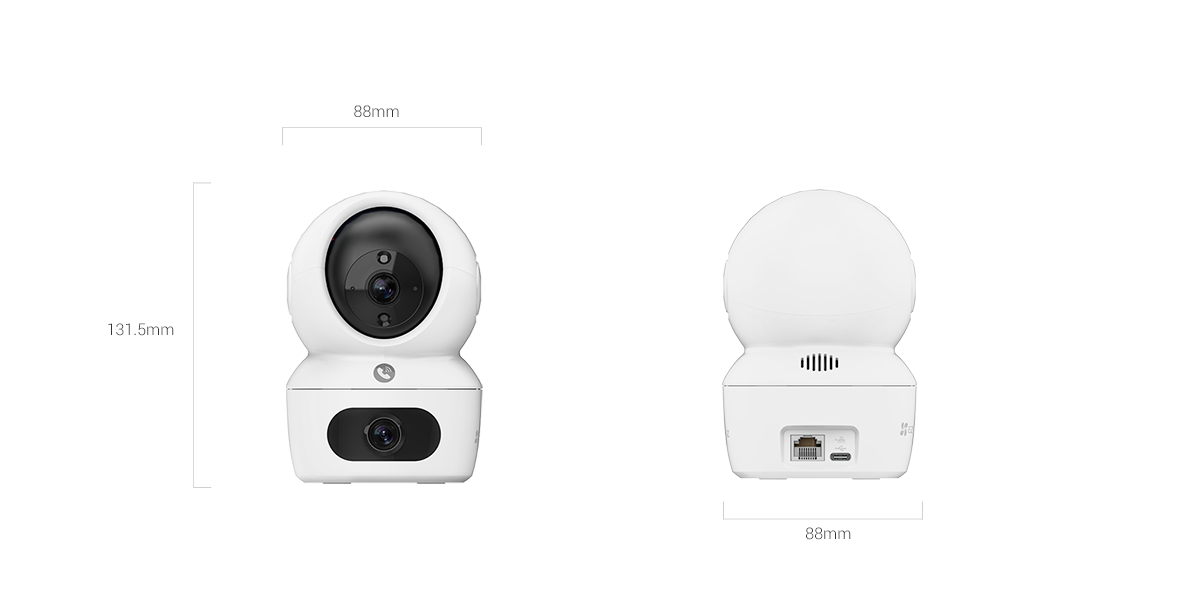

Dimensions 88mm x 88mm x 131.5mm (3.46? x 3.47? x 4.69?)
