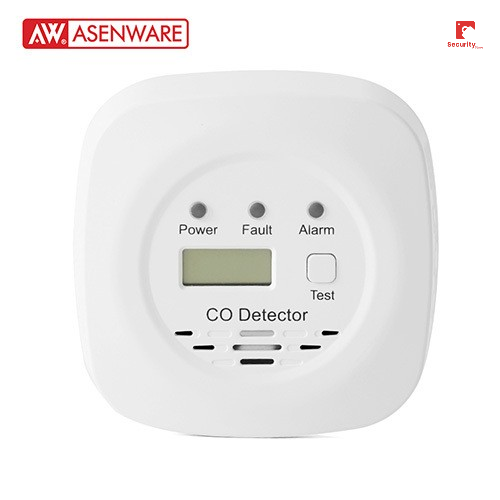

The addressable carbon monoxide detector AW-D125A is an intelligent detector which can be configured with Asenware AW-FP200 series

addressable fire alarm control panel. Each point (device) can be given specific ID, which allows the panel to continuously monitor specific detector location (point).

It is equipped with a sturdy mounting bracket for quick, easy and secure installation.

Addressable Co Detector Features

• Two-wire connection
• High-Accuracy
• LCD display
• Wide detection range
• Fault indication
• 10 Years sensor life
• Meets all requirements of standard
• EN 50291-1-2018

Addressable CO Detector Installation Instructions

In a Single-level Home:

Install at least one conventional CO detector near or within each separate sleeping area.

For additional protection, install an additional conventional CO detector at least 20 feet (6 meters) away from the furnace or fuel burning heat source.

In a Multi-level Home:

Install at least one conventional CO detector near or within each separate sleeping area.

For additional protection, install at least one conventional CO detector on each level of the home. If you have a basement, install conventional CO detector at the top of the basement stairs.

For additional protection, install an additional conventional CO detector at least 20 feet (6 meters) away from the furnace or fuel burning heat source.

Where Addressable Co Detectors Should Not Be Installed

Any extremely dusty, dirty or greasy areas.

Closer than 20 feet from a furnace or other fuel burning heat source, or fuel burning appliances like a water heater.

Within 5 feet of any cooking appliance.

Self diagnostic function by

MCU intelligent software. Excellent reliability & High stability. Ideal for all kitchens.
