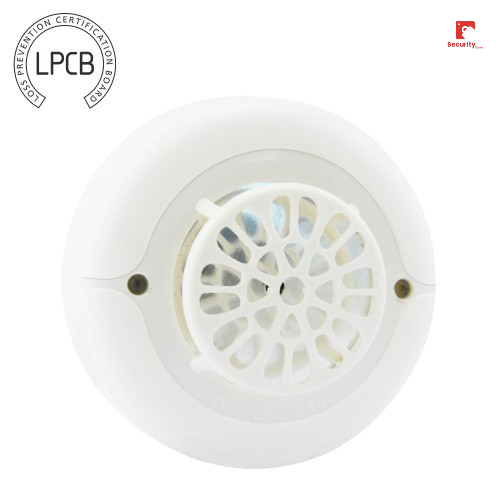

4 wire Conventional fire alarm 60v heat detector with relay

Description

The AW-CTD382-4 wire Conventional fire alarm heat detector 60VDc with relay uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value or/and the temperature achieved fixed temperature.It is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturer.

Features

1.Surface mounting

2. LED indicator

3. Complete functional test with every activation

4. Meets all requirements of latest EN54-5:2017

Technical Specification

Application	For indoor use only
Wiring	Terminal 6: DC Input Terminal 5: DC Input
Wiring	Terminal 3: Alarm output Terminal 2: Alarm output
Fix Temperature Alarm	57℃(135°F) A2R
Rate of Rise Alarm	7.1℃/5s A2R
Environmental	Class A temperature range: -10 to 50°C (14~122°F)
Environmental	Humidity: 5 to 95% RH, non-condensing
Alarm relay output capacity	100mA(Max) @60VDC( for resistive load)
Main Voltage	24-60VDC
