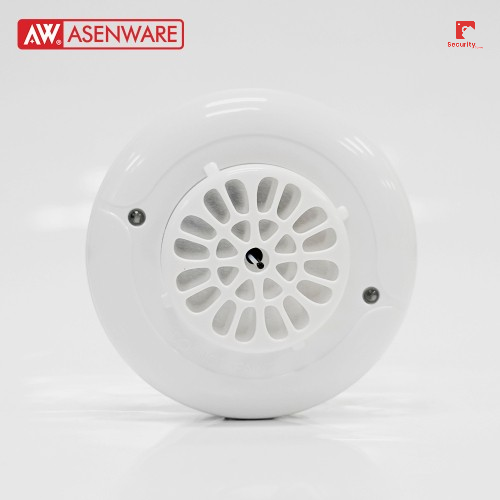

The AW-CTD382-4W 4 wire Conventional fire alarm heat detector 24VDc with relay uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value or/and the temperature achieved fixed temperature. It is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturer.
Features
Technical Specification
| Operating Voltage | 9～28VDC |
| Operating current(@ 24VDC) | NO Standby current≤120uA, Alarmcurrent≤20mA |
| NC Standby current≤12mA, Alarmcurrent≤5mA | |
| Application | For indoor use only |
| Wiring | Terminal 6: DC24V Terminal 5: DC24V |
| Terminal 3: Alarm output Terminal 2: Alarmoutput | |
| Fix Temperature Alarm | 57℃(135°F) A2R |
| Rate of Rise Alarm | 7.1℃/5s A2R |
| Environmental | Temperature range: -10 to 50°C(14~122°F) |
| Humidity: 5 to 95% RH, non-condensing |
