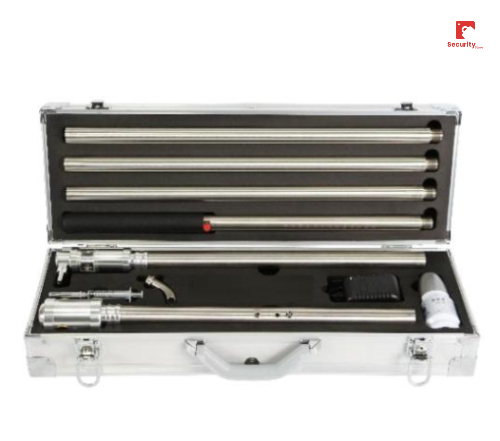

AW-D212 4 in 1 smoke/heat/flame/LPG gas detector tester adopts two combinations of detecting heads, A and B. Head A can detect smoke and heat detectors, head B can detect flame, gas and heat detectors. The combination of two types of detecting heads can detect and test the sensitivity of various point-type smoke detectors, heat detectors, combined detectors, flame detectors, and gas detectors.
Testing type |
smoke/heat/flame/LPG gas |
Detecting end material |
anodized aluminium + stainless steel |
Connecting rod material |
Stainless steel |
Standard length |
2.5m (Optional connecting rod) |
Set weight |
4.45kg |
Smoke (full charge) test |
450-800 times |
Heating test |
＞300 pcs |
Output temperature |
＞80°C |
Flame test |
＞400 pcs |
Gas source |
Butane gas |
Connecting rod length |
0.5m |
Battery voltage |
7.4V DC |
Charger output |
8.4V DC 1000MA |
Spectrum |
Infrared≥850mm, ultraviolet≤280mm and infrared-ultraviolet broadband |
Temperature source |
A detecting end is electronically heated, B detecting end is gas-fired (infrared-ultraviolet broadband) |
