The purpose of the  32 Zone Addressable Fire Alarm Control Panel (FACP) is to monitor input signals, give indications and possibly activate outputs as programmed. It is designed to comply with EN 54-2 with qualities of simple installation, operation and easy maintenance.

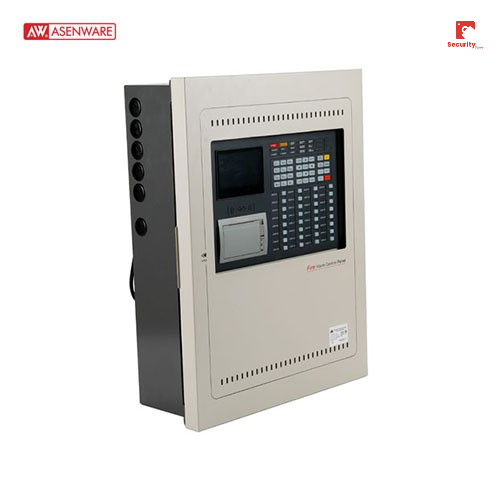

The AW-FP300 32 Zone Fire Alarm Control Panel is an addressable fire detection panel with 1 loop of 324 addressable points and expansion capabilities. It is compatible with other peripherals made by ASENWARE with its own protocol.

32 Zone Addressable Fire Alarm Control Panel  Features

• Up to 324 addresses on one loop
• An easy to read, 4.3” color screen LCD with a resolution of 480×272
• Zone indication and control panel(ZCP) for 32 zones gives a quick indication of the location of an alarm
• Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation
• An independently programmable conventional sounder circuit output
• Integral power supply and battery
• Integral printer
• Flexible cause and effect programming on front panel
• Zone test, point test and module start/stop testing facilitate the commissioning
• U-disk interface makes the load and save of configuration or historical data convenient for system commissioning and maintenance
• Hierarchy management with three access levels
• Anti-tamper protection by a key lock
• CAN bus for interconnection of up to 20 FACPs and RS485 for connection with up to 30 fire indicating panels per FACP

  Technical parameters

  Power supply
  Mains supply		230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A
  Mains fuse		T3.15AL250V
  Operating voltage		18.5 ~ 30VDC
  Recommended mains cable		Screened or standard/black mains cable, cable size 0.75mm2
  Power rating		Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A
  Max. charging current		1.2A
  Max. battery supply current		4A (when the Mains is disconnected)
  Battery capacity, type and recommended model		Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic)
  Max. internal resistance of battery		1.5Ω
  Battery fuse		F8AL250V
  Recommended battery cable		14AWG
  Quiescent current (full loaded)		< 0.4A
  Outputs
  S.C. Out (+, -)	Output voltage	18.5 ~ 30VDC
  	Max. output current	0.5A
  	Fuse rating	F1AL250V
  	End of line resistor	4K7
  	Recommended type of cable	Plain unscreened cable, 1.5mm2
  	Cable diameter	1mm2 ~ 2mm2
  	Transmission distance	≤1500m
  	Max. number of sounders @50mA	20
  F.P.E. Out (+, -) F.A. Out (+, -)	Output voltage	18.5 ~ 30VDC
  	Max. output current	0.5A
  	Fuse rating	F1AL250V
  	End of line resistor	4K7
  	Recommended type of cable	Plain unscreened cable, 1.5mm2
  	Cable diameter	1mm2 ~ 2mm2
  	Transmission distance	≤1500m
  Fault Out (NC, COM, NO)	Contact capacity	30VDC@2A, [email protected]
  	Recommended type of cable	Plain unscreened cable, 1.5mm2
  	Cable diameter	1mm2 ~ 2mm2
  24VK (+, -)	Output voltage	18.5 ~ 30VDC
  	Max. output current	0.6A
  	Fuse rating	F1AL250V
  	Recommended type of cable	Plain unscreened cable, 1.5mm2
  	Cable diameter	1mm2 ~ 2mm2
  Input
  Class change (+, -)	Input mode	Passive
  	Cable resistance	≤500Ω
  	Recommended type of cable	Plain unscreened cable, 1.5mm2
  	Cable diameter	1mm2 ~ 2mm2
  Loop
  Loop Out (+, -) Loop In (+, -)	Output voltage	16.5 ~ 30VDC, pulse
  	Output current	0 ~ 0.3A
  	Loop type	Class A
  	Recommended type of cable	Screened or unscreened twisted-pair, 1.5mm2
  	Transmission distance	≤1000m
  	Cable diameter	1mm2 ~ 2mm2
  Network communication
  RS-485	Max. number of FIPs	30
  	Transmission rate	9600 bps
  	Recommended type of cable	Screened or unscreened twisted-pair, 1mm2
  	Transmission distance	≤1000m
  	Cable diameter	1mm2 ~ 5mm2
  CAN	Max. number of panels	20
  	Transmission rate	Optional: 10K, 20K, 50K and 100K bps
  	Recommended type of cable	Screened or unscreened twisted-pair, 1mm2
  	Transmission distance	≤1000m
  	Cable diameter	1mm2 ~ 5mm2
  Physical dimensions
  Approx. Dimensions of the panel (W×H×D)		430×560×170mm
  Approx. weight (without battery)		14kg
  Operating conditions
  Temperature range: -5°C~ 50°C; Max relative humidity: 95% (40°C ± 2°C, no condensation)
