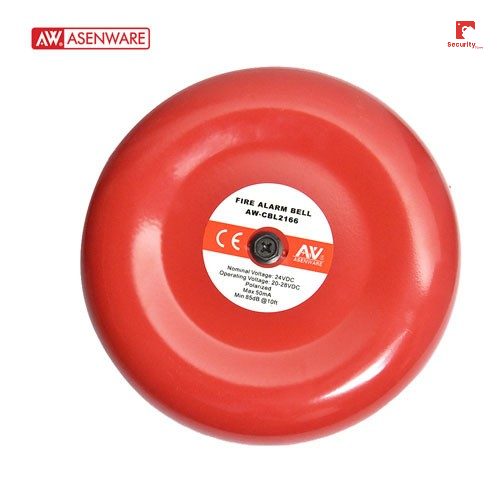

24V Conventional Fire alarm belFire alarm bell, a fire alarm device, generally used in public areas. In the event of an emergency situation is controlled by the alarm controller to trigger an alarm, one for each region under normal circumstances, be used for fire alarms, good warning sound effects.Fire alarm bell  generally come in 6 inch and 8 inch Specification.

Fire alarm bell internally by a 24V DC motor driven by the crankshaft and connecting rod bells, no relays work, work current, high reliability.

Fire alarm for supporting specific products and linkage fire alarm systems, when the system recognizes fire broke out by linkage control equipment to the scene.

24V Conventional Fire alarm bell feature:

• Appearance, firm structure
• Easy to install, the typical American installation
• Has low power consumption, large volume, ring-tones crisp, continuous work extremely long life characteristics
• Perfectly configured in a variety of alarm systems

  Working voltage	20VDC to 28VDC	20VDC to 28VDC
  Work current @24VDC	≤50mA	≤50mA
  Volume(dB) @1m	≥98dB	≥100dB
  Dimensions	150mm*150mm*60mm	200mm*200mm*67.5mm
  Net Weight	600g	1060g
