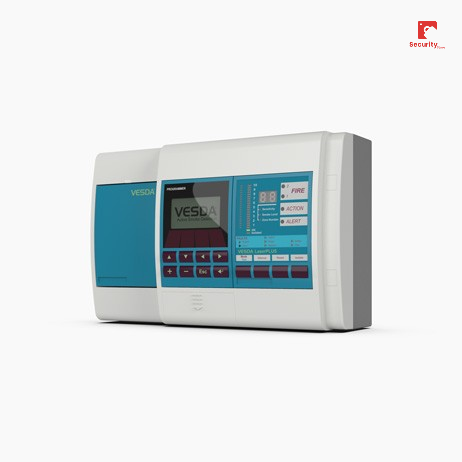

2 or 4 zone Aspirating smoke detectors

Description

The 2/4 zone Aspirating smoke detectors can actively sample and analyze the number of smoke particles in air samples, and upload the data to the background system in a timely manner for users to view and take correct measures.

The 2/4 zone Aspirating smoke detectors has a wide range of applications and is suitable for the following occasions:

Large spaces: airports, rail transit, stadiums, warehousing and logistics, etc.

Narrow spaces: communication room cabinets, inside power system equipment, Internet data centers, etc.

Clean places: electronics, pharmaceuticals, large hospitals, financial institutions, key laboratories, etc.

Non-clean places: thermal power plants, cable trenches, paper mills, mines and traffic tunnels, etc.

Technical parameter

Input Voltage	Rated operating voltage is 24Vdc (operating voltage: 20.4~26. 4Vdc)
Vaximum power	30W
Protection area	The protection area of a single hole is 20 m2, and 100 holes ofthe whole machine can reach 2000 m2
Analysis Chamber	Laser cavity l
Sampletube size	Outer diameter 25mm, inner diameter 2lmm
Sampling Holes	26 single tubes, 104 quad tubes
Airflow monitor	3 Level
Alarm level	5 levels
Display	7-inch touch screen
Relay output	3 pairs
